FedCM updates: Display iframe domain

From Chrome 142, you can opt to display the iframe's domain in the FedCM UI when the Relying Party (RP) is embedded as a third-party iframe on another site. This feature enhances transparency for users when they are signing in to a service that's embedded on a different website.

Background

Previously, when FedCM was invoked from within a cross-origin iframe, the FedCM dialog UI would only display the top-level site's domain. This could create confusion for users if the service they were interacting with was different from the top-level site. For example, a user might be on a news website that embeds a commenting widget. When the user tries to sign in to the commenting widget, the FedCM dialog would only show the news website's domain, not the commenting service's domain:

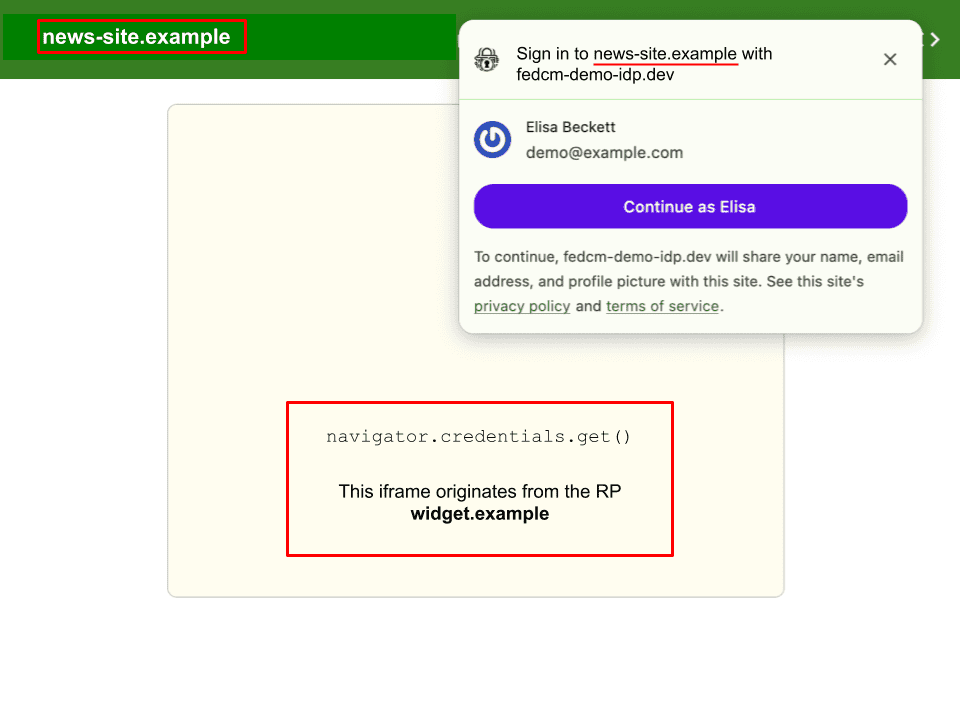

FedCM dialog title includes the text: 'Sign in to news-site.example with fedcm-demo-idp.dev'.
When FedCM is called from within the iframe, the iframe's domain isn't displayed in the UI.

To address this, Chrome now has a way for IdPs to indicate the iframe's domain where the token is sent to in the FedCM dialog in addition to the top-level site's domain. This provides a clearer picture to the user about which third-party services are involved in the sign-in process.

FedCM dialog title includes the text: 'Sign in to news-site.example with fedcm-demo-idp.dev. news-site.example embeds content from widget.example'.
When FedCM is called from within the iframe, the IdP can choose to display both the iframe and the embedding site domains in the UI dialog.

Implementation

The IdP's client metadata endpoint receives both a client_id and optionally a top_frame_origin, for example:

GET /client_metadata_endpoint?client_id=1234&top_frame_origin=https%3A%2F%2Ftop-frame.example HTTP/1.1
Host: idp.example
Origin: https://iframe.example/
Accept: application/json
Sec-Fetch-Dest: webidentity

The IdP can then implement custom logic to determine if the RP and the top level site are the same party. If the RP owns both the top-level site and the iframe, the IdP may choose to only display the top-level domain, which is the default behavior. To display both domains, the IdP needs to include the client_is_third_party_to_top_frame_origin property in their client metadata endpoint response and set its value to true.

Here is an example of what the client metadata endpoint response would look like:

// In the client metadata endpoint
const clientIsThirdParty = isClientOriginDifferentFromTopFrame();
responseData = {
  privacy_policy_url: "..."
  terms_of_service_url: "...",
  client_is_third_party_to_top_frame_origin: clientIsThirdParty,
}

When this property is set to true and RP is embedded as an iframe on another site, the FedCM dialog will display both the top-level site's domain and the iframe's domain. This provides the user with more context about the sign-in request.

The default value for client_is_third_party_to_top_frame_origin is false, so existing implementations won't be affected by this change.

There are more details in the documentation on implementing FedCM on an Identity Provider.

Try it out

You can see a live demo of this feature at fedcm-demo-rp.dev/iframe. The code is hosted in the demo GitHub repository.

We welcome your feedback on this and other FedCM features. Share your thoughts and report any issues on the FedCM GitHub repository.
